Low profile under cabinet lighting

  • Low profile under cabinet lighting
  • Low profile under cabinet lighting
  • Low profile under cabinet lighting
  • Low profile under cabinet lighting

Low profile under cabinet lighting

    Min. Order: 1 Piece/Pieces
    Packaging: White/grey box for inner package, carton for outer package. Need to collect extra fee for customized color box.
    Productivity: 100,000pcs per month
    Brand: Vertex/ OEM available.
    Transportation: Express,Air,Land,Ocean
    Place of Origin: P.R.C
    Supply Ability: 100,000pcs per month
    Certificate: CE, ROHS, SAA
    HS Code: 9405100000
    Port: Foshan

Basic Info

Model No.: CL-6

Product Description

Low profile under cabinet lighting

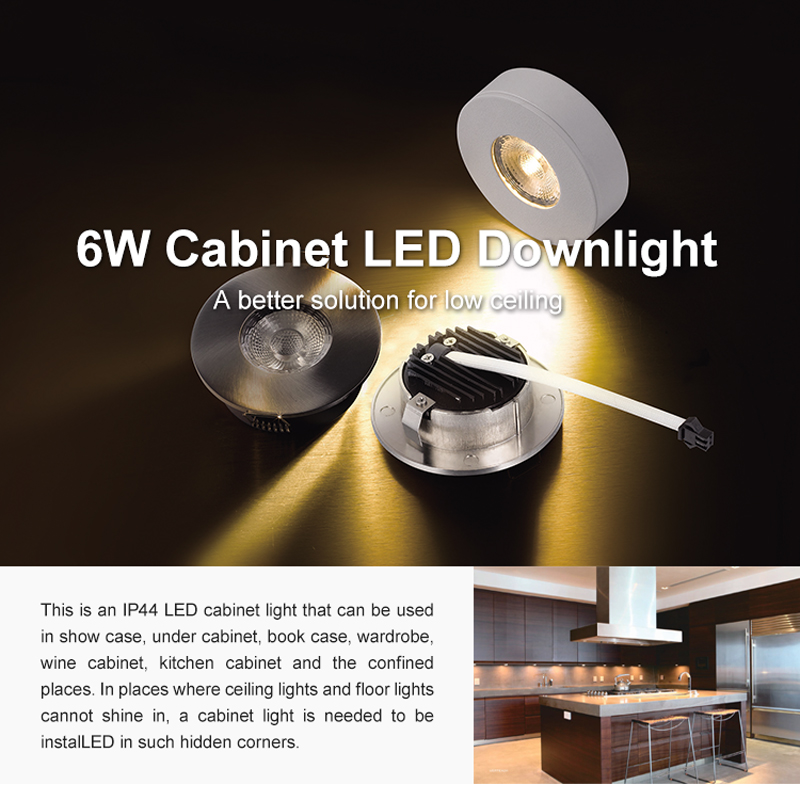

6W LED Low profile under cabinet lighting CL-6 is a type of round cabinet light of Vertex Lighting. Speaking of the light source and driver, we select high quality chip and dimmable driver. CL-6 is ultra thin light suitable for some low cabinet such as show case.

Vertex has CE, RoHS and some relevant certification for recessed downlight for EU market.


A fixed IP44 rated version of the luxury range of Low profile under cabinet lighting from Integral. These fully integrated downlights contain everything you need including an Led Light source and LED driver.


As a manufacturer, Vertex is professional in design and produce IP65 downlight, Square downlight, Low profile downlight, Surface downlight, Cabinet downlight etc.

Description:

Recessed IP44, round diameter Ø82mm, Ø72mm cut out, 6W Low profile under cabinet lighting.
Model No.: CL-6
Brand: Vertex/ OEM available.
MOQ: 1000pcs
Production ability: 100,000pcs per month
Payment terms: 30% as deposit and balance should be paid before shipment.
Original: China
Certificate: CE, RoHS
Package: White/grey box for inner package, carton for outer package. Need to collect extra fee for customized color box.





Features :

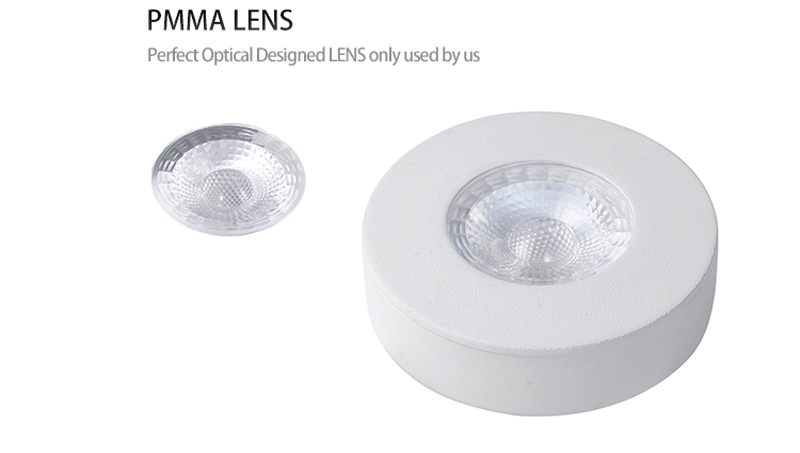

  • PMMA lens;
  • Campatible with both of surface mounted and recessed installation;
  • Smooth triac dimming, 0-100% dimmable ;
  • Very easy application
  • Aluminum radiator.

Detailed specification of Low profile under cabinet lighting :

Application Indoor IP rating IP44
CCT 2700K/3000K/4000K/5000K
CRI
Ra>80 (>90 available)
Beam angle 40° Luminous flux 500lm
Fire rated No Luminous efficiency 83.3lm/W
Installation way Recessed Material Aluminum housing
Lighting resource COB led Power 6W
Bezel color White, Brush Nickel,Black Protection Classes Class III
Brand of led Cree, Luminus, Bridgelux,
Chinese brand led.
Brand of led convert Vertex
Voltage/Frequency AC 220-240V 50-
60Hz
Insulation Covered No
Dimmable Dimmable with leading and trialing edge(warm dimming available) Power Supply DC 36V 150mA
Driver External Driver Power Factor >0.9
Lifespan Over 40,000 hours Warranty 5 years warranty
With fast connector With fast connector in terminal box available Other Fixed Version

Product Show:

under cabinet lighting
Cabinet Spot Lights
Cabinet Spot Lighting
Cabinet Spot Light
under cabinet lightingunder cabinet lighting

Applications:

CL-6 6 watt Low profile under cabinet lighting can make a wouderful lighting ambient in cabinet, kitchen, bookcase, cloakroom etc.
under cabinet lighting

Vertex Quality Control System:

downlight

FAQ

Question: How to choose the right Color Temperature?

Answer: Color rendering and appearance are critical considerations in light source selections.Correlated Color Temperature(CCT)relates to the color of light produced by a light source,and uses the Kelvin temperature measurement scale.
Colorrendering index(CRI)is a measure of how accurately an artificial light source displays colors.The higher the CRI(80 and above).the better the artificial light source is at rendering colors accurately.
Warm White(2600K-3200K)is the warmest option that most closely approximates a standard halogen bulb.It is most often used in areas like living rooms.
Bright White(3200K-4500K)is a whiter light than soft white and is most often selected for kitchens and bathrooms or work spaces.
Daylight(4500K-6500K)is recommended for reading areas or for use in craft rooms and is a more bluish white that mos closely approximates an outdoor overcast sky.

Question: How many lights am I going to need?
Answer: This question has no easy answer,as opinions on this subject vary greatly.However,a good rule of thmb is to take the height of the ceiling and divide it in half.This is the distance that each light should be from one another.The total number of lights will also be affected by the type and wattage of bulb being used.Spot lights with narrow beams will produce pockets or pools of light,while flood type bulbs will produce broader amounts of light.

Question: Are LEDs bad for your eyes?
Answer: Like any light source,if you stare too long it will cause some discomfort and or imaging.However,if LED products are used the same way traditional lighting is used,they will not damage your eyes.
